Product Details:
Payment & Shipping Terms:
|
| Tensile Strength: | 55KN | Mix Ratio: | 1:1 |
|---|---|---|---|
| Resin Type: | Modified Pure Epoxy | Application: | Structural Strengthening |
| T-peeling Strengt: | Less Than 25mm | Tensile Shear Strength: | Above 10Mpa |
| Capacity: | 1000ml | Rebar Size: | Dia. 10-32 |
| High Light: | epoxy resin anchors,injectable adhesive anchors |
||

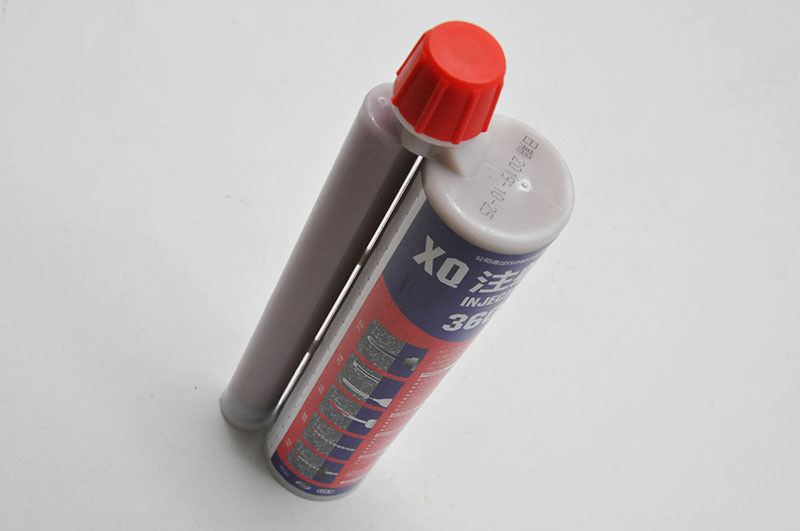

1000ml 1:1 Cartrige Epoxy Chemcial Anchor Adhesive For Structural Strengthening
Chemical anchor adhesive, epoxy injection mortar, Chemical fixing glue,
Chemical anchoring system used for anchoring and rebar connections in concrete.
Item #: FixingChor110
Capacity: 1000ml
Materials: Epoxy
Mixing Ratio: 3:1
Product Description:
1000ml 1:1 Cartrige Epoxy Chemcial Anchor Adhesive For Structural Strengthening is
a two component, high tensile strength, modified pure epoxy chemcial anchor adhesive.chemical fixing system
strong fixing with exceptionally high chemcial resistance.Applied in one single action this resin will produce a high performance,
Suitable for
Non-cracked concrete
Reinforcement bars
For fixing of:
Steel constructions
Consoles
High-racks
Machines
Staircases
Wooden constructions
Reinforcement bars
Pass GB50728-2011
Humidity resistance testing
Freeze-thaw resistance Testing
Resistance to fatigue stress Testing
Resistance of long term stress testing etc .
Can be used in projects with Design Period of 50 years.
|
Testing Items |
Condition |
Index |
||
|
Adhesive Performance (According to China National Standard GB50728-2011) |
||||
|
Splitting Tensile Strength (MPa) |
Under (23±2)℃,(50±5)%RH, tested by loading speed of 2mm/min |
≥8.5 |
||
|
Flexural Strength (MPa) |
≥50 (no fragment damage) |
|||
|
Compressive Strength (MPa) |
≥60 |
|||
|
Bonding Capacity (According to China National Standard GB50728-2011) |
||||
|
Steel-Steel Tensile Shear Strength (MPa) |
(23±2)℃,(50±5)%RH |
≥10 |
||
|
Bonding strength of Ribbed steel bar (or screw) with concrete under constrain drawing condition |
(23±2)℃ (50±5)%RH |
C30,Ф25,L=150mm |
≥11 |
|
|
C60,Ф25,L=150mm |
≥17 |
|||
|
Steel-Steel T-peeling strength (mm) |
(23±2)℃,(50±5)%RH |
≤25 |
||
|
Non-volatile content |
(105±2)℃,(180±5)min |
≥99% |
||
|
Ageing resistance to heat and humidity 90d |
||||
|
Reduction rate of tensile strength |
Under normal room temperature |
≤12% |
||
|
(According to China National Standard JGJ145-2013) |
||||
|
Tensile Strength (after high temperature welding) |
Dia12 Grade II steel, C30 concrete Hole dia.16mm, Depth: 150mm |
55.1N, 57.0N, 54.8N |
||
Approved for anchorings in
Railway or express way modification works
Structure reinforcement
Curtain wall installing
Concrete, cracked and non-cracked Applications
Rebar planting in concrete structures.
Bridge modification works
Keel fixing in out wall
ATTENTION
- Do not install anchors when the temperature is less than 10°C.
- If the cartridge is not finished, please clean the opening, then put the plug back and cap tightly.
- At temperatures below 10°C should be warmed or stored in temperatures
of 10-30°C for 24hours prior to use to improve product flow and cure.
- If the gelling time expires, please use a new static mixer.
- Do not cut or shorten nozzles.
- It can be used again in the future by replacing the static mixer.
- Please ensure hole is properly cleaned. Hole may be damp but must be free from water.
- Do not install anchors when substrate temperature is less than 0°C.
