|Materials:||Carbon Fibre CFRP Sheet||Thickness:||1.4mm|
|Tensile Strength:||2400Mpa||Elastic Modulus:||170000Mpa|
carbon fiber plate,
carbon fiber fabric sheets
carbon fibre CFRP sheet

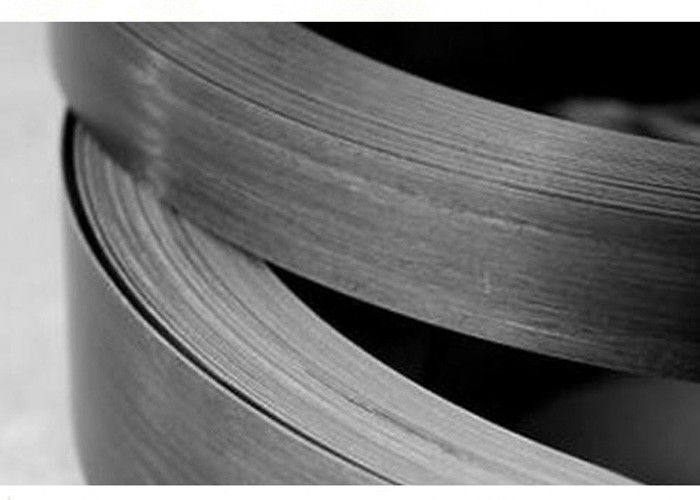

XQ Carbon Fiber CFRP Sheet
Carbon fiber reinforced unidirectional sheet, carbon fibre CFRP sheet formed as putting the carbon fiber impregnated with resin, then hardened in mould and pultrusion. Adopted with high quality carbon fiber material with good basic resins, carbon fiber sheets feature good performance as high tensile strength, corrosion resistance, shock resistance, impact resistance.
Range of Application
Bending, and Shearing reinforcement for Concrete beams
Reinforcement for Concrete floors, bridge, concrete and brick walls.
Reinforcement for shear wall, bridge piers and piles
Reinforcement for chimneys, tunnels, pools and concrete pipe
1, high tensile strength, corrosion resistance, shock resistance, good impact resistance;
2, light weight, good flexibility;
3, easy for handling and good quality assurance
4, good durability and corrosion resistance.
1. Basic parameters
1) Specification: 1.0mm, 1.2mm, 1.4mm, 2.0mm thickness
2) Strength class: high strength grade I, high strength grade II;
3) Length: 50m, 100 m
4) Width: 50mm, 100mm, rolled as ring and binded by belt.
5) Specific gravity: 1.6
2. Main Performance
|High Strength Grade I|
|Tensile strength||≥2400 MPa|
|Tensile modulus of elasticity||≥1.7×105 MPa|
|Layer cutting strength||≥50 MPa|
Cohesive pulling strength with base materials
To concrete and brick materials, ≥2.5MPa based on cohesive damage
To Steel, ≥3.5 no bonding damage
|Fabric content in volume||≥65 %|
Remarks: all technical data are average values.
Preparation → Concrete surface treatment → Mix and paint the base resin material → Leveling → Mix and paint the impregnated resin → Pasting the carbon fiber sheet → Surface protection.
1, on-site workers should take appropriate protection measures and take care of fire and keep good ventilation.
2, When open the roll, the sheet may occur to bounce up, pay kind attention.
3, The sheet is conductive, take care of the electrical appliances nearby.
