Product Details:
Payment & Shipping Terms:
|
| Materials: | Epoxy | Initial Curing: | 30 Mins Under 25 Degree Celsius |
|---|---|---|---|
| Weight: | 1020g | Color: | Grey Or Red |
| Capacity: | 585ml | Mixing Ratio: | 3:1 |
| Tensile Strength: | 55KN | ||
| High Light: | rebar adhesive,rebar epoxy adhesive |
||

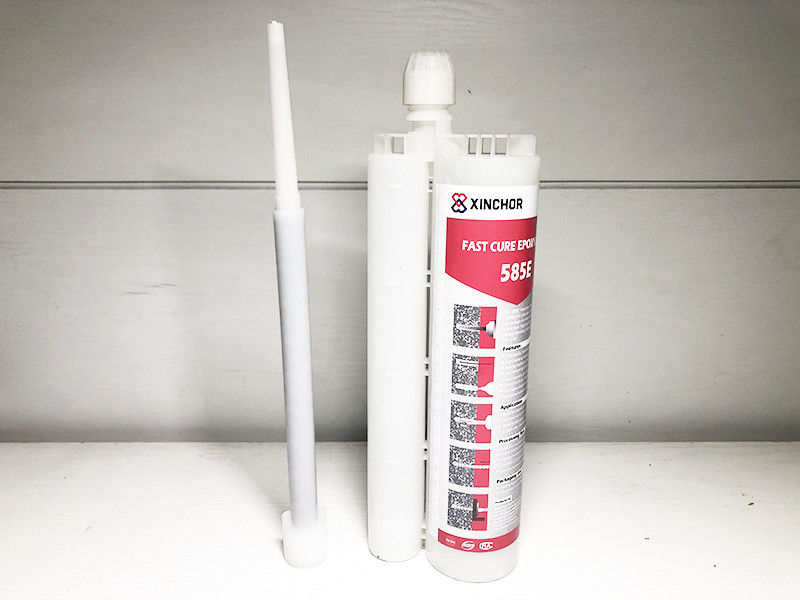

Injection System Chemical Anchors
Adhesive Anchoring System, Injectable Adhesive Anchor
Chemical anchor adhesive, epoxy injection mortar, Chemical fixing glue,
Chemical anchoring system used for anchoring and rebar connections in concrete.
Strong, Versatile Epoxy Anchor Adhesives For Threaded Rod, Rebar
Item #: FixingChor158
Capacity: 585ml
Materials: Epoxy
Mixing Ratio: 3:1
Product Description:
Injection System Chemical Anchors
Adhesive Anchoring System, Injectable Adhesive Anchor
with approvals for rebar connections and heavy-duty anchoring
Base material condition: Wet Dry
Base materials: RC Concrete (cracked and uncracked), Masonry wall
Application Range
Fixing of railings
Fixing of handrails, balustrades and supports
For structural work:
Fixing of window and door frames
Rebar / steel reinforcement anchoring in new and refurbishment works.
Threaded rods
Bolts and special fastening systems
Mechanical and electrical services installation
Anchoring of supports for ducting and equipment.
Metal Work, carpentry
Fixing of the following substrates:
Suitable for
Non-cracked concrete
Reinforcement bars
Concrete
Hard natural and reconstituted stone
Solid rock and masonry
For fixing of:
Steel constructions
Staircases
Consoles
Machines
High-racks
Wooden constructions
Reinforcement bars
Technical Parameter:
1. Basic parameters
1) Appearence
Part A (main): white cream
Part B (hardener): red cream / grey cream
2) Mixed Viscosity: 18-22Pa.s
3) Hardened density: 1.50±0.10g/cm3
4) Mixing ratio (Volume ratio): 390ml(3:1)
5) Shelf time: 24 months
2 Main Performance
| Testing project | Condition | Index | ||
| Gel Performance (According to China National Standard GB50728-2011) | ||||
| Split Tensile Strength (MPa) | Under (23±2)℃, (50±5)%RH, tested by loading speed of 2mm/min | ≥8.5 | ||
| Flexural Strength (MPa) |
≥50 (no fragment damage) |
|||
| Compressive Strength (MPa) | ≥60 | |||
| Bonding Capacity (According to China National Standard GB50728-2011) | ||||
| Steel-Steel Tensile Shear Strength (MPa) | (23±2)℃ (50±5)%RH | ≥10 | ||
| Bonding strength of Ribbed steel bar (or screw) with concrete under constrain drawing condition | (23±2)℃ (50±5)%RH | C30,Ф25,L=150mm | ≥11 | |
| C60,Ф25,L=150mm | ≥17 | |||
| Steel-Steel T-peeling strength (mm) | (23±2)℃,(50±5)%RH | ≤25 | ||
| Non-volatile content | (105±2)℃,(180±5)min | ≥99% | ||
| Ageing resistance to heat and humidity 90d | ||||
| Reduction rate of tensile strength | Under normal room temperature | ≤12% | ||
| (According to China National Standard JGJ145-2013) | ||||
| Tensile Strength (after high temperature welding) |
Dia12 Grade II steel, C30 concrete Hole dia.16mm, Depth: 150mm |
55.1N, 57.0N, 54.8N | ||
3 Technical Data
Anchoring Adhesive used with thread rod
| Thread Rod Dia |
C30 Concrete |
M10 | M12 | M16 | M20 | M24 |
| Drilling Dia.(mm) | 12 | 14 | 18 | 24 | 28 | |
| Depth (mm) | 90 | 110 | 145 | 180 | 220 | |
| Damage Pulling force KN | Grade 5.8 Steel | 29 | 42.2 | 78.5 | 122.5 | 254.5 |
| Grade 8.8 Steel / A4 SS | 36.8 | 52.9 | 94.1 | 147.0 | 211.7 | |
| Damage Cutting force KN | Grade 5.8 Steel | 17.4 | 25.3 | 47.1 | 73.5 | 105.9 |
| Grade 8.8 Steel | `27.8 | 40.5 | 75.3 | 117.6 | 169.4 | |
| Designed Pulling force KN | 12.0 | 17.02 | 30.6 | 52.4 | 75.2 | |
| Designed Cutting Force KN | Grade 5.8 Steel | 12.2 | 17.6 | 32.9 | 51.5 | 74.1 |
| Grade 8.8 Steel | 18.6 | 27.0 | 50.2 | 78.4 | 113.0 | |
| Holes for each | 54 | 25 | 8 | 5 | 3 |
Processing Method
1 Tools
2 Attention
Drilling: As per technical data sheet
Cleaning: using air pump or compressed air and brush to clean the holes completely.
Assembling and Injection: Mount the static mixer onto the bottle, push out some incomplete mixed gel at the front part,then inject from the bottom of the hole, to fill 1/2 to 2/3 depth of the hole.
Bar planting: spin slowly the rebar or thread rods into the hole, adjust up and down for several times to make the gel average, but don’t touch it during hardening time.
Curing and Maintenance: According to the temperature of the base materials, give enough time to harden and start to load mounting until it hardened completely.
Curing time:
| Operation and Curing time | |||||
| Temperarure ℃ | -5 | 0 | 10 | 20 | ≥30 |
| Operation time (min) | 60 | 45 | 30 | 25 | 20 |
| Curing time (h) | 72 | 48 | 24 | 12 | 6 |
Consumption Chart (holes per cartridge)
| Anchor Rod dia. | M10 | M12 | M16 | M20 | M24 |
| Drilling Dia.(mm) | 12 | 14 | 18 | 24 | 28 |
| Depth (mm) | 90 | 110 | 145 | 180 | 220 |
| Each usage | 8ml | 13ml | 28ml | 62ml | 103ml |
| 360ml | 45 | 27 | |||
| 390ml | 48 | 30 | 14 | 6 | 3 |
| 585ml | 73 | 45 | 20 | 9 | 5 |
| 650ml | 81 | 50 | 23 | 10 | 6 |
